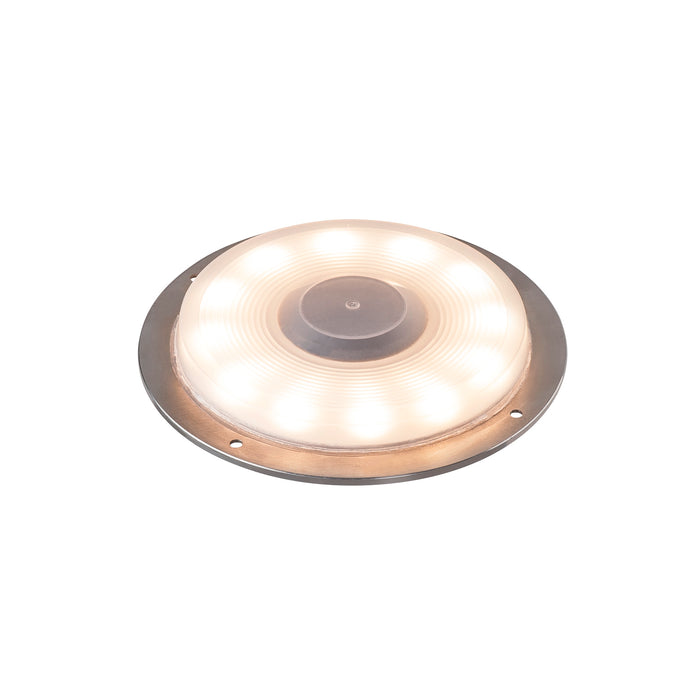

SLV BIG PLOT module, aluminium, 3000K

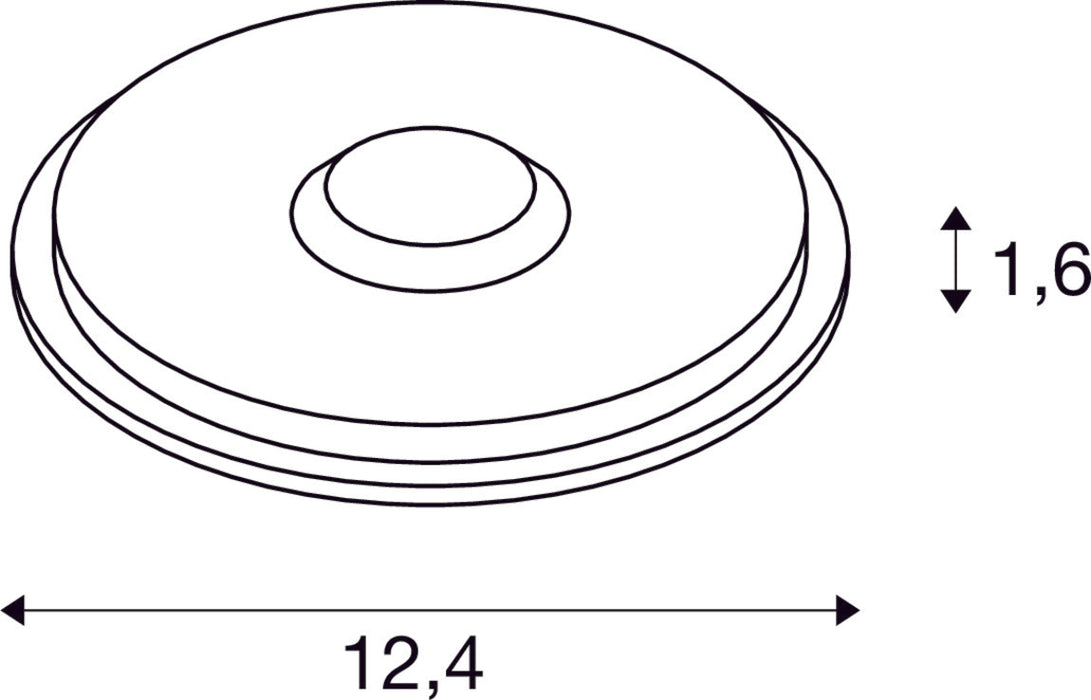

Dimensioned drawing of SLV BIG PLOT module, aluminium, 3000K

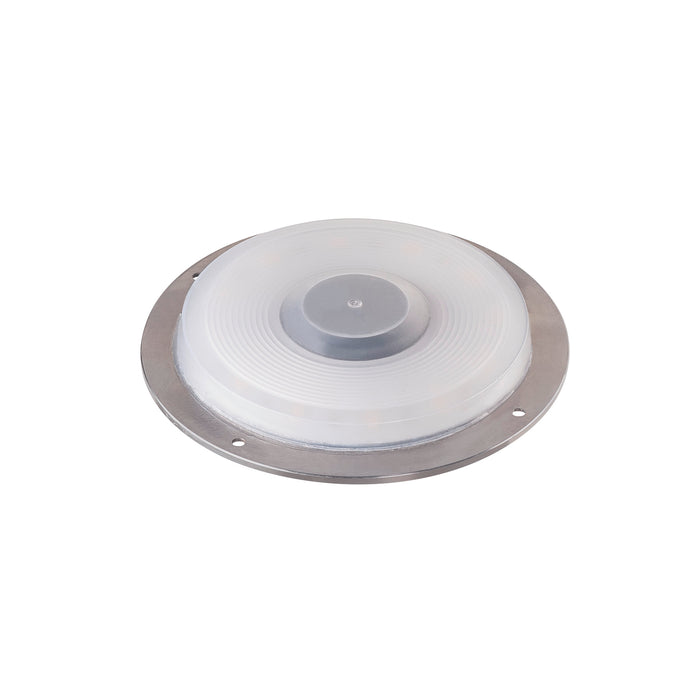

Back view product picture of SLV BIG PLOT module, aluminium, 3000K
SLV BIG PLOT module, aluminium, 3000K
Dimensioned drawing of SLV BIG PLOT module, aluminium, 3000K
Back view product picture of SLV BIG PLOT module, aluminium, 3000K
SKU: 1008000

BIG PLOT module, aluminium, 3000K

£67.20 inc. VAT £96.00
£56.00 ex. VAT £80.00
£56.00 - £56.00
£67.20 inc. VAT £96.00
£56.00 ex. VAT £80.00
PLOT is the module for creating lighting effects and directional lighting in outdoor areas. Extraordinary lighting effects can be created with this BIG PLOT module made of aluminium and polymethylmethacrylate (PMMA). BIG PLOT is a winner with its high quality, and not only in the colour aluminium. The IP 67 protection class provides optimum protection.
Live Stock & Dispatch Availability SLV Direct
Manufacturer Stock: 867 units available 5 Working Day Delivery

Official SLV UK Partner • 5-Year Manufacturer Warranty

Backed by the official 5-year SLV manufacturer warranty and 30-day UK returns. Need technical or project advice? Email sales@slvlightingdirect.com.

COMPATIBLE SYSTEM COMPONENTS

Recommended Accessories

SLV 228726 - T-CONNECTION BOX, black, IP68
228726 T-CONNECTION BOX, black, IP68
£24.36 inc. VAT£20.30 ex. VAT
Add
SLV 1001262 - BIG PLOT cover, 2 outlets, anthracite
1001262 BIG PLOT cover, 2 outlets, anthracite
£41.16 inc. VAT£34.30 ex. VAT
Add
SLV 228730 - CONNECTION BOX, 3-pin, IP68
228730 CONNECTION BOX, 3-pin, IP68
£13.44 inc. VAT£11.20 ex. VAT
Add
SLV 1001263 - BIG PLOT cover, 4 outlets, anthracite
1001263 BIG PLOT cover, 4 outlets, anthracite
£41.16 inc. VAT£34.30 ex. VAT
Add
TECHNICAL SPECIFICATIONS & DATA SHEETS

Luminaire Specifications & Downloads

All Specifications
Physical & Dimensions
Electrical
Photometric & Lighting
Downloads & CAD
Physical & Dimensions
Housing Colour
Aluminium
Length
124 mm
Width
124 mm
Height / Depth
16 mm
Net Weight
0.338 kg
Outer Diameter
124 mm
Degree of Protection
IP67
Electrical
Max. Power
5 W
Photometric & Lighting
Colour Temperature
3000 K
Max. Lumen Output
540 lm
Beam Angle
Extreme wide beam >80°
Downloads & CAD
Product Data Sheet (PDF)
Mounting Instructions (PDF)
Conformity Certificate
